Description
Product details

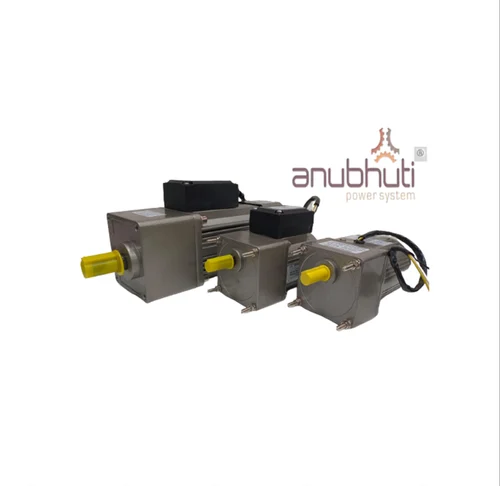

FHP Motor Manufacturer in India Wattage 11 - 50W Speed 1440 rpm Phase Three Phase No. of Poles 4 Voltage 415 V Frequency 50 Hz Type of Motor induction motor Torque 1.8kg.cm Brand anubhuti • Continuos Rating, TE Aluminium Die Cast Body. • Rotates in clock wise or counter clock wise direction. • Over runs after few rotations after supply is cutt off. • Speeds are 2880 / 1440 and further low speeds with the gearbox. • Terminal box o Output Power W Model Frequency Hz Supply Voltage Volt Current A Starting Torque Kg.cm Rated Torque Kg. cm Rated Speed RPM Capacitor 25 80 4G IW 25 60 110 V Single Phase 0.40 1.2 1.7 1450 2.5 25 80 4G IX 25 50 230 V Single Phase 0.20 1.2 1.8 1250 1.5 25 80 4G IY 25 60 230 V Three Phase 0.21 2.0 1.7 1450 ----- 25 80 4G IY 25 50 230 V Three Phase 0.20 1.9 1.6 1350 ----- 25 80 4G IZ 25 50 415 V Three Phase 0.15 1.5 1.7 1350 ----- Gearmotor Torque Table : The maximum permissible torque is 80 kg.cm 50Hz Unit: kg.cm RPM 500 416 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 Output Torque 5 6 8.3 10 12 15 21 25 30 41 48 58 72 80 80 80 80 80 80 80 Gear Boxes are sold separately. A Sky blue colored background indicates gear shaft rotation in the same direction; a Brown background indicates rotation in the opposite direction as the motor shaft. The speed of the Gear Motor is calculated by dividing the motor’s synchronous speed (50 Hz; 1500 RPM & 60 Hz; 1800 RPM) by the ratio. The actual speed is 2~20% less than the displayed value, depending upon the load size. Characteristics, specifications and dimensions are subjected to change without prior notice. r open lead wires for connections.
