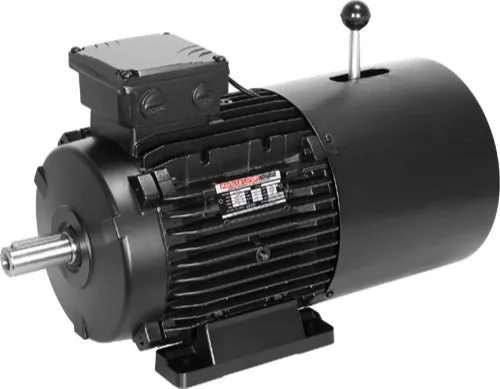

Dc Break Motor Manufacturer in India Output Power 0.75 hp, 0.5 hp, 1 hp, 1.5 hp, 0.5 TO 10 HP, >3 hp Ambient Temperature 55 Brake Rating 15 ft-lb, <10 ft-lb, 35 ft-lb, 25 ft-lb Frame Size 71 TO 132 Phase Three Phase Duty Cycle S1,S2,S3,S4 Mounting B3,B5,B14 No Of Poles 4/6/8 Brand ANUBHUTI Voltage 415 Capacitance YES Ce Marking YES Enclosure NO Frame 71 TO 132 Maximum Input Current 415 Permissible Load Inertia J 750 KG Rated Torque Or Rated Speed 1440 Speed Regulation Load 1330 Speed Regulation Temperature 55 Starting Torque Motor Shaft 6 A Minimum order quantity: 1 Piece Concept: Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will be stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at a non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required. Range: Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60. Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112M Mounting: Foot-Flange-Face Voltage and Frequency:Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525volts on HZ. 50 or 60 ) Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.
