Description

Product details

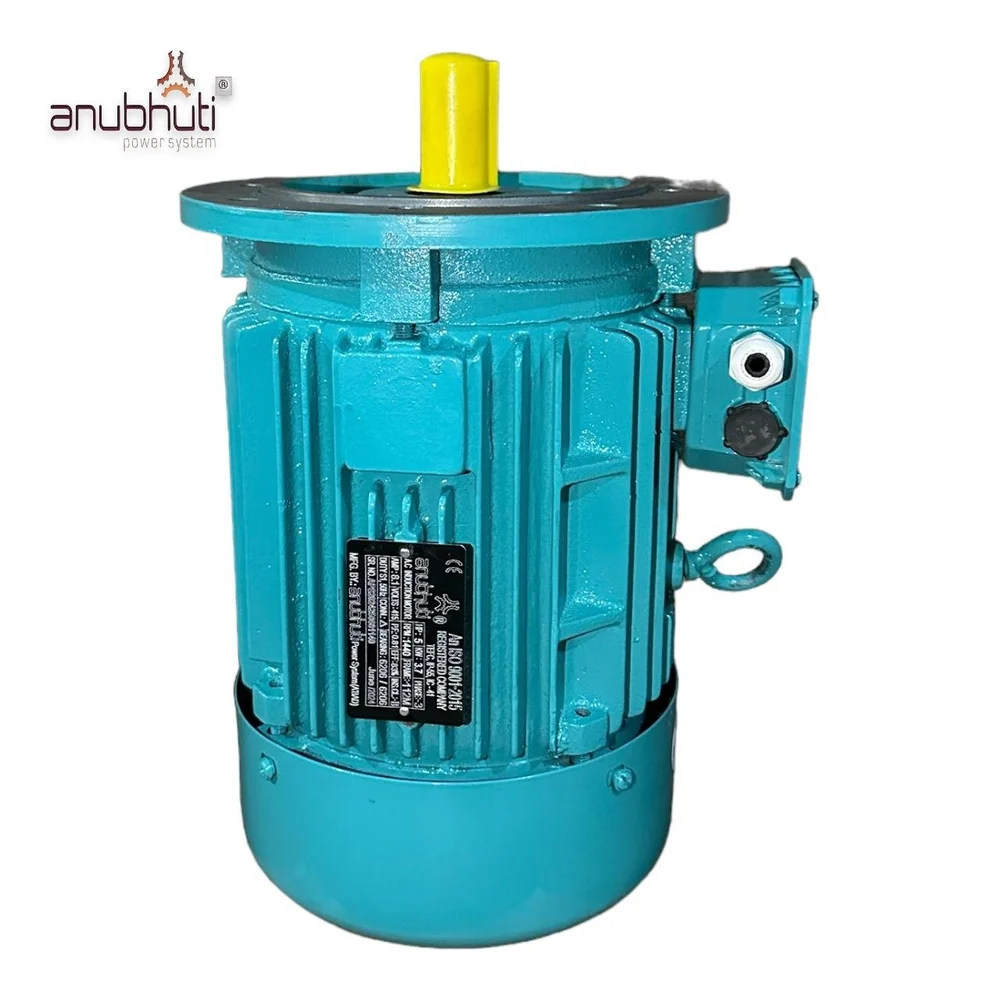

Dual Speed Electric Motor Manufacturer in India Efficiency IE2 Speed (Rpm) 3000, 1500, 1000 & 750 P.F 0.8-0.9 Torque (Kg.M) 5-20 Efficiency % 50-60 IP rating IP 54, IP55 Power Source Electric Shaft SS410 Country of Origin Made in India In order to cater the variegated demands of our clients, we are offering an excellent quality range of Dual Speed Electric Motor. Concept: Two speed or dual speed motor has special design to work for two different speeds. Range: 0.25 to 10 H.P. (0.18 to 7.5 kW) Two speed motor are offer in 2/4, 2/6, 2/8, 4/6, 4/8, & 6/8 poles. (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750 & 1000/750) Dual speed motor available in single winding 2/4, 4/8 and other pole in double winding All motors are suitable to 415+-5% 50 Hz+-3% & combined +-6%. On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60. Mounting: Foot-Flange-Face ( B3 / B5 / B14 ) Insulation: All dual speed motor is supplied with ‘F’ class insulation but temperature rise restricted to ‘B’ class. Duty: Our dual speed Motor is suitable for: Continues duty (S1) Short time duty (S2) Intermittent periodic duty (S3) Intermittent duty with Starting (S4) Intermittent duty with starting & ele. Braking (S5)
