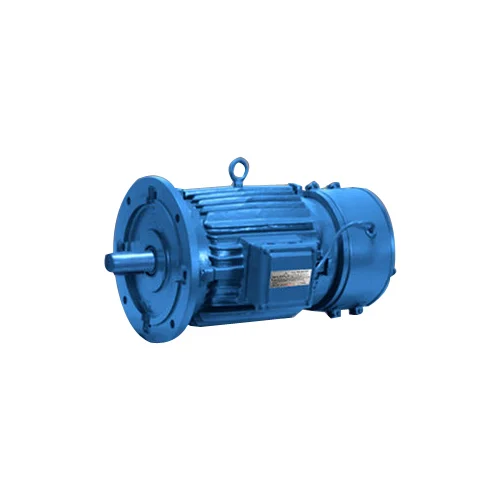

Ac Brake Motor Manufacturer in India Speed (Rpm) 3000,1500,1000&750 Ip Rating IP54 , IP55 Duty S1 S2 S3 S4 Frame 71 to 160 L I Class B.E.F. Motor 0.5 to 10 HP Enclosure TEFC , TESC With our expertise and trustworthiness, we are engaged in offering an optimum quality range of Brake Motor. Details: Brake Motor is a combination of three-phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at non-driving end of motor, braking disc is mounted directly on motor shaft. Brakes are directly acting, no lever or links are required. Specifications: Mounting: Foot-Flange-Face Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525volts on HZ. 50 or 60 ) Insulation: Motor supply with class F insulation as standard feature. Also supply H on request of customer at extra cost.
